Go to Toa Web Site Toa F2000B
2-way Loudspeaker
  • 8" LF driver and 1" horn loaded HF dome
  • Frequency response 65Hz~20kHz
  • Sensitivity 92dB 1w/1m
  • HF Dispersion 110° by 100°
  • Continuous power capacity 180w
  • Data Sheet in .pdf format (1.1mB)

Go to Toa Web Site Toa F2000WTWP
2-way Loudspeaker
  • 8" LF driver and 1" horn loaded HF dome
  • Frequency response 65Hz~20kHz
  • Sensitivity 92dB 1w/1m
  • HF Dispersion 110° by 100°
  • Continuous power capacity 60w
  • 100v taps @ 60w 30w 15w 3w
  • Weatherproof to IPX4
  • Weight 7.4kg
  • Data Sheet in .pdf format (1.1mB)

Go to Toa Web Site Toa F1000B
2-way Loudspeaker
  • 4" LF driver and 1" horn loaded HF dome
  • Frequency response 85Hz~20kHz
  • Sensitivity 87dB 1w/1m
  • HF Dispersion 90° by 90°
  • Continuous power capacity 90w
  • Data Sheet in .pdf format (1.1mB)

Go to Toa Web Site Toa F1000WTWP
2-way Loudspeaker
  • 4" LF driver and 1" horn loaded HF dome
  • Frequency response 85Hz~20kHz
  • Sensitivity 92dB 1w/1m
  • HF Dispersion 90° by 90°
  • Continuous power capacity 15w
  • 100v taps @ 15w 5w 3w 1w
  • Weatherproof to IPX4
  • Weight 2kg
  • Data Sheet in .pdf format (1.1mB)


Go to Toa Web Site TOA F Series
Ceiling Loudspeaker

Go to TOA Web Site TOA F-122C
Ceiling Loudspeaker
  • 5" full range driver
  • Frequency response 70Hz~20kHz
  • Sensitivity 90dB 1w 1m
  • Conical dispersion 120º 1Hz-4kHz
  • Power 120w continuous @ 8Ω
  • 30w transformer with front baffle tap selector
  • Weight 3.7kg

Go to TOA Web Site TOA F-1522SC
Ceiling Loudspeaker
  • 4" full range driver
  • Frequency response 65Hz~18kHz
  • Sensitivity 88dB 1w 1m
  • Conical dispersion 160º 1Hz-4kHz
  • Power 18w continuous @ 8Ω
  • 6w transformer with front baffle tap selector
  • Weight 1kg

Go to TOA Web Site TOA F-2322C
Ceiling Loudspeaker
  • 5" full range driver
  • Frequency response 70Hz~20kHz
  • Sensitivity 90dB 1w 1m
  • Conical dispersion 170º 1Hz-4kHz
  • Power 120w continuous @ 8Ω
  • 30w transformer with front baffle tap selector
  • Weight 3.7kg


Go to TOA Web Site TOA F-2352SC
Ceiling Loudspeaker
  • 5" LF driver
  • 1" dome HF driver
  • Frequency response 80Hz~20kHz
  • Sensitivity 89dB 1w/1m
  • HF dispersion 155º 1Hz-4kHz
  • Power capacity 18w continuous @ 8Ω
  • Hole dimensions 200mm dia x 154mm deep
  • 6w transformer with front baffle tap selector
  • Weight 1.5kg

Go to TOA Web Site TOA F-2352C
Ceiling Loudspeaker
  • 5" LF driver
  • 1" dome HF driver
  • Frequency response 70Hz~20kHz
  • Sensitivity 91dB 1w/1m
  • HF dispersion 170º 1Hz-4kHz
  • Power capacity 120w continuous @ 8Ω
  • Hole dimensions 200mm dia x 229mm deep
  • 30w transformer with front baffle tap selector
  • Weight 3.7kg

Go to TOA Web Site TOA F-2852C
Ceiling Loudspeaker
  • 6½" cone driver and dome tweeter
  • Frequency response 60Hz~20kHz
  • Sensitivity 91dB 1w/1m
  • Conical dispersion 120º 1Hz~4kHz
  • Power capacity 180w continuous @ 8Ω
  • 60w transformer with front baffle tap selector
  • Weight 5.1kg


Go to TOA Web Site TOA CS Series
Wide-range Horn Loudspeakers

Go to TOA CS Series Web Site TOA CS-64
Wide-range Horn Loudspeaker
  • 12cm full range cone driver
  • Frequency response 130Hz~13kHz
  • Conical dispersion 100°
  • Sensitivity 96db 1w 1m
  • Power 6w continuous
  • 70V/100V transformer with screwdriver-adjustable power taps
  • IP-64 rating & stainless-steel mounting hardware
  • Weight 1.5kg

Go to TOA CS Series Web Site TOA CS-154
Wide-range Horn Loudspeaker
  • 12cm full range cone driver
  • Frequency response 150Hz~15kHz
  • Horizontal dispersion 90°
  • Sensitivity 97db 1w 1m
  • Power 15w continuous
  • 70V/100V transformer with screwdriver-adjustable power taps
  • IP-64 rating & stainless-steel mounting hardware
  • Weight 2.8kg

Go to TOA CS Series Web Site TOA CS-304
Wide-range Horn Loudspeaker
  • 12cm full range cone driver
  • Frequency response 120Hz~15kHz
  • Horizontal dispersion 90°
  • Sensitivity 98db 1w 1m
  • Power 30w continuous
  • 70V/100V transformer with screwdriver-adjustable power taps
  • IP-64 rating & stainless-steel mounting hardware
  • Weight 3.1kg


Go to TOA Web Site TOA SC Series
Horn Loudspeakers

Go to TOA SC Series Web Site TOA SC-615M
Horn Loudspeaker
  • Phenolic diaphragm driver
  • Frequency response 280Hz~12.5kHz
  • Sensitivity 112db 1w 1m
  • Power 15w continuous
  • 70V/100V transformer with screwdriver-adjustable power taps
  • IP-65 rating, sealed, aluminum enclosure & stainless-steel mounting hardware
  • Weight 1.3kg

Go to TOA Web Site TOA SC-630M
Horn Loudspeaker
  • Phenolic diaphragm driver
  • Frequency response 250Hz~12.5kHz
  • Sensitivity 113db 1w 1m
  • Power 30w continuous
  • 70V/100V transformer with screwdriver-adjustable power taps
  • IP-65 rating, sealed, aluminum enclosure & stainless-steel mounting hardware
  • Weight 2kg

Go to TOA SC Series Web Site TOA SC-650M
Horn Loudspeaker
  • Phenolic diaphragm driver
  • Frequency response 250Hz~6kHz
  • Sensitivity 109db 1w 1m
  • Power 50w continuous
  • Rated impedance 16Ω
  • IP-65 rating, sealed, aluminum enclosure & stainless-steel mounting hardware
  • Weight 3.4kg


Go to TOA Web Site TOA BS-1030
PA Loudspeaker
  • 5" cone driver and dome tweeter
  • Frequency response 80Hz~20kHz
  • Sensitivity 90dB 1w 1m
  • Power 90w continuous @ 8Ω
  • 100v taps @ 30w 20w 15w 10w 5w & 8Ω bypass
  • IP-X3 rated
  • Weight 2.8kg

Go to TOA Web Site TOA BS-633
PA Loudspeaker
  • 5" cone driver
  • Frequency response 120Hz~15kHz
  • Sensitivity 91dB 1w 1m
  • Power 6w continuous @ 100v
  • 100v taps @ 6w & 3w
  • Weight 810g

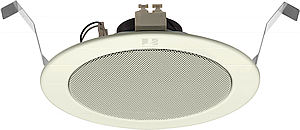

Go to TOA Web Site TOA PC-2852C
Ceiling Loudspeaker
  • 8" cone driver
  • Frequency response 45Hz~20kHz
  • Sensitivity 96dB 1w/1m
  • Power capacity 15w transformer with tap selector
  • Weight 1.6kg
