Go to QSC Web Site QSC K8
Biamp Powered Loudspeaker
  • 8" LF driver
  • 1¾" compression driver
  • Frequency response 66Hz~18kHz
  • HF dispersion 90°x90°
  • Maximum SPL 127dB@1m
  • 500w LF amplifier
  • 500w HF amplifier
  • On-board crossover, EQ and limiters
  • Weight 12.2kg
  • Product Brochure in .pdf format (931kB)

Go to QSC Web Site QSC K10
Biamp Powered Loudspeaker
  • 10" LF driver
  • 1¾" compression driver
  • Frequency response 60Hz~18kHz
  • HF dispersion 90°x90°
  • Maximum SPL 129dB@1m
  • 500w LF amplifier
  • 500w HF amplifier
  • On-board crossover, EQ and limiters
  • Dual FOH & floor monitor
  • Weight 14.5kg
  • Product Brochure in .pdf format (931kB)

Go to QSC Web Site QSC K12
Biamp Powered Loudspeaker
  • 12" LF driver
  • 1¾" compression driver
  • Frequency response 52Hz~18kHz
  • HF dispersion 90°x90°
  • Maximum SPL 131dB@1m
  • 500w LF amplifier
  • 500w HF amplifier
  • On-board crossover, EQ and limiters
  • Dual FOH & floor monitor
  • Weight 18.6kg
  • Product Brochure in .pdf format (931kB)


Go to QSC Web Site QSC HPR152i
Biamp Loudspeaker
  • 15" LF driver 3" voice coil
  • 1¾" compression driver
  • Frequency response 54Hz~17.5kHz
  • HF dispersion 90°x60°
  • Max SPL 135dB@1m
  • 400w LF amplifier
  • 100w HF amplifier
  • On-board crossover, EQ and limiters
  • Weight 45.5kg
  • Spec Sheet in .pdf format (988kB)

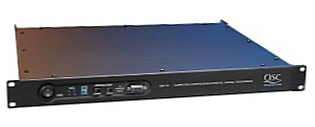

Go to QSC Audio Web Site QSC DSP-3
Digital signal processor
  • Functions include crossover, shelf and parametric filtering, signal delay, compression and peak limiting
  • Attaches to DataPort-equipped QSC amplifiers including CX, DCA & PL2
  • 2ch 24bit 48kHz ADDA converters
  • Spec sheet in .pdf format (414kB)

Go to QSC Audio Web Site QSC HPR181
Powered Bass Loudspeaker
  • 18" LF driver with 4" voice coil
  • Frequency response 45~95Hz
  • Max SPL 134dB@1m peak
  • Power capacity 700w
  • On-board crossover and limiters
  • Stereo XLR thru outputs
  • Stereo XLR HF outputs
  • Weight 58kg
  • Dimensions 597mm x 727mm x 582mm
  • Spec Sheet in .pdf format (988kB)


Go to QSC Audio Web Site QSC PowerLight PLX2502
Power amplifier
  • Power output 2 x 675w@4Ω
  • Limiters on each channel with adjustable threshold, attack and release times
  • 2-way 24db/oct Linkwitz-Riley crossover with LF time alignment
  • 5Hz, 30Hz and 50Hz high-pass filters
  • 1db detented input attenuators
  • Signal and clip LED indicators
  • Weight 9.5kg
  • Spec sheet in .pdf format (275kB)

Go to QSC Audio Web Site QSC PowerLight PLX3602
Power amplifier
  • Power output 2 x 1100w @ 4ohms
  • Limiters on each channel with adjustable threshold, attack and release times
  • 2-way 24db/oct Linkwitz-Riley crossover with LF time alignment
  • 5Hz, 30Hz and 50Hz high-pass filters
  • 1db detented input attenuators
  • Signal and clip LED indicators
  • Weight 9.5kg
  • Spec sheet in .pdf format (275kB)


Go to QSC Audio Web Site QSC RMX Series
Power amplifier
  • RMX 1850 2x 550w/4Ω
  • RMX 2450 2x 650w/4Ω
  • 30Hz & 50Hz low-frequency filters
  • Independent user-defeatable clip limiters
  • Signal & Clip LED indicators
  • High-current toroidal transformers
  • Spec sheet in .pdf format (374kB)

Go to QSC Audio Web Site QSC DSP-3
Digital signal processor
  • Functions include crossover, shelf and parametric filtering, signal delay, compression and peak limiting
  • Attaches to DataPort-equipped QSC amplifiers including CX, DCA & PL2
  • 2ch 24bit 48kHz ADDA converters
  • Spec sheet in .pdf format (414kB)

Go to QSC Audio Web Site QSC RMX 5050HD
Power Amplifier
  • 2x 1600w/4Ω
  • 30Hz & 50Hz low-frequency filters
  • Independent user-defeatable clip limiters
  • Signal & Clip LED indicators
  • High-current toroidal transformers
  • Weight 34kg
  • Spec sheet in .pdf format (374kB)


Go to QSC Audio Web Site QSC GX5
Power amplifier
  • Power output 2 x 700w @ 4ohms
  • GuardRail protection prevents excessive clipping or overheating
  • Built in 100Hz 2-way crossover
  • Detented input attenuators
  • Signal and clip LED indicators
  • Weight 12.5kg
  • Spec sheet in .pdf format (302kB)

Go to QSC Audio Web Site QSC PowerLight PL236
Power amplifier
  • Power output 2 x 1100w @ 4ohms
  • Limiters on each channel with adjustable threshold, attack and release times
  • 2-way 24db/oct Linkwitz-Riley crossover with LF time alignment
  • 5Hz, 30Hz and 50Hz high-pass filters
  • 1db detented input attenuators
  • Signal and clip LED indicators
  • Weight 9.5kg
  • Spec sheet in .pdf format (528kB)

Go to QSC Audio Web Site QSC ISA300Ti
2ch 100v amplifier
  • Power output 2x280w@4Ω 2x300w@100v
  • Switchable limiter on each channel
  • Selectable HPF 50Hz & 75Hz
  • 2db detented rear panel input attenuators
  • Weight 20kg
  • Spec sheet in .pdf format (275kB)
